Understanding LoRa Modulation through Comparison

Written by Alex, K2XAP of nyme.sh

LoRa packets come in a wide variety of shapes and sizes, depending on their parameters. These shapes bring with them pros and cons. One of the biggest impacts is the airtime. Meshes have to choose between range, noise tolerance, and time on the air, finding the right balance of link reliability and congestion for their density and location.

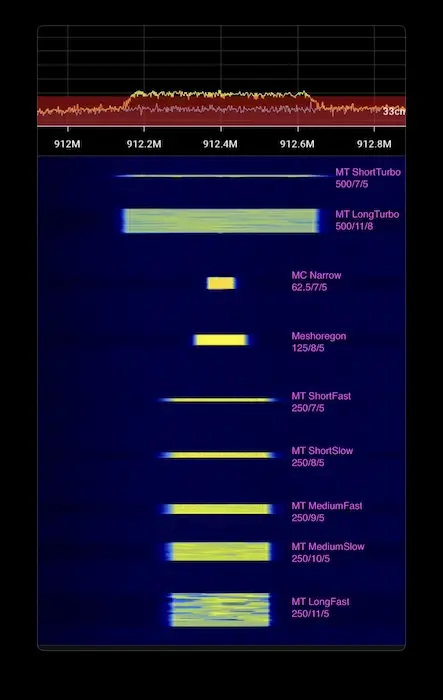

Series of transmissions at varying widths and lengths, labeled with the preset names. — Real-time video (345kb) of the above waterfall. This graphic and the video are CC 0 or public domain, feel free to share and republish as useful.

At the default settings, a Meshtastic packet can take literally a whole second to transmit. This gives it great range and resilience, but a mesh can quickly become congested as soon as it exceeds the number of contacts a typical device can hold. Faster settings sacrifice range for much lower airtime, and can use infrastructure to compensate for lower link reliability with retries of packets. Each step faster in Meshtastic presets is a roughly 45% reduction in airtime.

The bandwidth also changes the exposure to noise. Wider bandwidth gives LoRa a much quicker transmission speed and reduces risk of "vertical" collisions in the temporal dimension, but it increases the chance of "horizontal" collisions in the spectral dimension—in addition to increased thermal noise exposure.

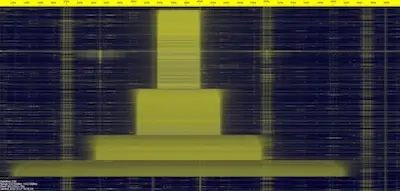

SDR view of several hours showing spectral density of different frequencies. Large blocks of yellow get progressively wider and wider amid various columns of transmissions. — Every permutation of bandwidth, spread factor, coding rate, from 62.5 kHz to 500 MHz.

Presets and calculated attributes

These are the presets and their calculated attributes based on the Semtech LoRa calculator:

preset	bandwidth	spread_factor	coding_rate	effective_data_rate_bps	time_on_air_ms	link_budget_dB	range_km	processing_gain_dB
MC Narrow–Long	62.5	9	5	879	248	154.0	4.89	27
LongMod	250	11	8	671	297	153.0	4.58	33
LongFast	250	11	5	1074	248	153.0	4.58	33
MediumSlow	250	10	5	1953	124	150.5	3.89	30
MC Narrow	62.5	7	5	2734	72	149.0	3.53	21
Meshoregon	125	8	5	3125	72	148.5	3.41	24
MediumFast	250	9	5	3516	62	148.0	3.30	27
LongTurbo	500	11	8	1343	148	148.0	3.30	33
ShortSlow	250	8	5	6250	36	145.5	2.80	24
ShortFast	250	7	5	10938	18	143.0	2.38	21
ShortTurbo	500	7	5	21875	9	138.0	1.72	21

Demonstration

These steps will reproduce the above demonstration. This uses MeshCore because it can change radio settings without a device reboot, but the output is equivalent to any LoRa transmission.

Tune an SDR to the desired frequency. The script defaults to 912.4 MHz.
Flash a node as a USB MeshCore companion.
Install the meshcore python library: pip install meshcore.
Run the script (set the INTERFACE to the connected device):

import asyncio
from meshcore import MeshCore, EventType

INTERFACE = "/dev/tty.usbmodem1301"  # Set this to your local device
FREQUENCY = 912.4 # MHz, Change this to the desired frequency
PRESETS = [
    (250,11,5),   # MT LongFast
    (250,10,5),   # MT MediumSlow
    (250,9,5),    # MT MediumFast
    (250,8,5),    # MT ShortSlow
    (250,7,5),    # MT ShortFast
    (125,8,5),    # MeshOregon
    (62,7,5),     # MC Narrow
    (62,9,5),     # MC Narrow Long
    (500,11,8),   # MT LongTurbo
    (500,7,5),    # MT ShortTurbo
]

async def main():
    meshcore = await MeshCore.create_serial(INTERFACE)
    await meshcore.commands.set_tx_power(1) # Be a good RF neighbor
    await asyncio.sleep(1)
    for (bw,sf,cr) in PRESETS:
        await meshcore.commands.set_radio(FREQUENCY, bw, sf, cr)
        print((bw, sf, cr))
        result = await meshcore.commands.send_chan_msg(0, "The quick brown fox jumped over the lazy dog")
        print(result)
        await asyncio.sleep(1)
    await meshcore.disconnect()

asyncio.run(main())
